Based
on Direct Digital Synthesized (DDS) technology and unique FPGA design,

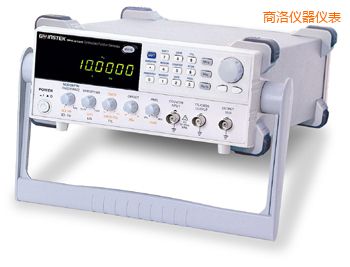

SFG-2000/2100 Series
Fuon, and fine
frequency resolution are the most remarkable
characteristics of this product series.nction Generators are built with exceptionally
high performance far exceeding that of any conventional
function
generators, at a very competitive price. Stable output frequency, low
distorti
|
MAIN |
Frequency
Range
(For Sine, Square)
|
1Hz~20MHz |
Frequency
Range
(For Triangle)
|
1Hz~1MHz
|
Frequency
Resolution
|
1Hz |
Frequency
Stability
|
∮ 20 ppm
|
Frequency
Accuracy
|
∮20 ppm
|
Frequency
Aging |
5 ppm / year
|
Output
Function |
Sine,
Square, Triangle
|
Amplitude
Range
|
2mV~10Vpp(into
50load)
|
Impedance
|
50∮10?
|
Attenuator
|
-20dB∮1dB⊙2
|
DC
Offset
|
≌-5V°≈+5V(into
50?load)
|
Duty
Control Range
|
20%
to 80%, 2Hz~1MHz (Square wave only)
|
Range
Resolution
|
1%
|
Display
|
9
digits LED display
|
SINE
WAVE
|
Harmonics
Distortion
|
-55dBc,0.1Hz°200kHz;
-40dBc,0.2MHz°4MHz; -30dBc,4MHz°10MHz
(Specification applied to both
TTL/CMOS OFF and from MAX. to 1/10 level)
|
Flatness
(Relative to 1kHz)
|
≌∮ 0.3dB,0.1Hz°1MHz; ≌∮ 0.5dB,1MHz°4MHz; ≌∮ 2dB, 4MHz°10MHz
|
TRIANGLE
WAVE
|
Linearity
|
≠98?,0.1Hz°100kHz;≠95?,100kHz°1MHz
|
SQUARE
WAVE
|
Symmetry
|
∮ 1% of period +4ns to 0.1Hz°100kHz
|
Rise
or Fall Time
|
∝25ns
at maximum output.(into 50?load)
|
CMOS
OUTPUT
|
Level
|
4Vpp∮1Vpp°15Vpp∮1Vpp
adjustable; Rise or Fall Time ∝120ns
|
TTL
OUTPUT
|
Level
|
≠3Vpp
; Fan Out; 20 TTL load ; Rise or Fall Time ∝25ns
|
STORE/RECALL
FUNCTION
|
|
10
groups of Setting memories
|
POWER
SOURCE
|
|
|
AC115V∮10%,
AC 230V+10%/-15%, 50/60Hz
|
ACCESSORIES
|
|
Instruction
manual⊙1
Power
Cord x 1
GTL-101⊙ 1
|
DIMENSION
& WEIGHT
|
266(W)⊙107(H)⊙293(D)
mm
Approx.
3.1kg
|
